Ordering Information

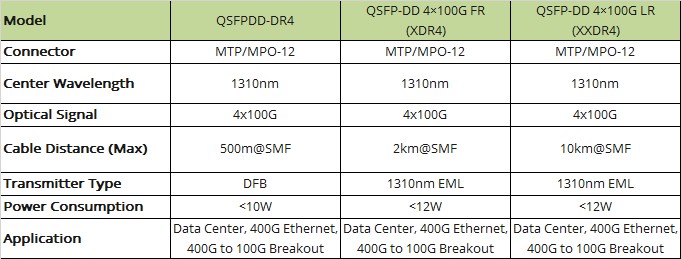

| Model | QSFPDD-DR4 | QSFP-DD 4×100G FR (XDR4) |
QSFP-DD 4×100G LR (XXDR4) |
| Connector | MTP/MPO-12 | MTP/MPO-12 | MTP/MPO-12 |
| Center Wavelength | 1310nm | 1310nm | 1310nm |
| Optical Signal | 4x100G | 4x100G | 4x100G |
| Cable Distance (Max) | 500m@SMF | 2km@SMF | 10km@SMF |
| Transmitter Type | DFB | 1310nm EML | 1310nm EML |
| Power Consumption | <10W | <12W | <12W |
| Application | Data Center, 400G Ethernet, 400G to 100G Breakout |
Data Center, 400G Ethernet, 400G to 100G Breakout | Data Center, 400G Ethernet, 400G to 100G Breakout |

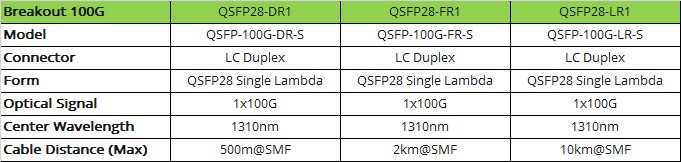

| Breakout 100G | QSFP28-DR1 | QSFP28-FR1 | QSFP28-LR1 |
| Model | QSFP-100G-DR-S | QSFP-100G-FR-S | QSFP-100G-LR-S |
| Connector | LC Duplex | LC Duplex | LC Duplex |
| Form | QSFP28 Single Lambda | QSFP28 Single Lambda | QSFP28 Single Lambda |
| Optical Signal | 1x100G | 1x100G | 1x100G |
| Center Wavelength | 1310nm | 1310nm | 1310nm |
| Cable Distance (Max) | 500m@SMF | 2km@SMF | 10km@SMF |
400G Features:
•Compliant with IEEE 802.3bs standard:
•400GBASE-DR4 optical interface
•400GAUI-8 electrical interface
•Compliant with QSFP-DD MSA HW Rev 5.1
Type 2 housing with MPO-12 connector
•Compliant with QSFP-DD CMIS Rev 4.0
•Maximum power consumption 10W
•Case operating temperature 0°C to 70°C
•Two wire serial Interface with digital diagnostic monitoring
•Complies with EU Directive 2011/65/EU (RoHS compliant)
•Class 1 Laser
100G Features:
•Compliant with QSFP28 Standard: SFF-8636 Rev 2.10a
•Compliant with IEEE802.3cu D3.2 100GBASE-LR1
•High speed I/O electrical interface (CAUI-4)
•Single 3.3V Supply Voltage
•Maximum power consumption 4.5W
•1311nm EML laser and PIN Receiver
•Hermetically sealed TO Based design
•QSFP28 MSA package with duplex LC connector
•Two Wire Serial Interface with Digital Diagnostic Monitoring
•KP4 FEC termination inside module
•Supporting 10km reach of single mode fiber
•Complies with EU Directive 2011/65/EU (RoHS compliant)
•Class 1 Laser
