Edge-core WEB-SMART PRO SWITCHES

WEB-SMART PRO SWITCHES

Edgecore Networks new Web-Smart Pro product family, ECS2100 series, with both Power-ov...
詳細介紹


Product Highlight

uFanless design (ECS2100-10T/P/28T)
uUp to 740 W PoE (ECS2100-28PP)
uDual firmware / configuration
uIPv4/IPv6
uL3 static routing
uConsole port
uPoE timer
uDashboard
uAuto firmware upgrade

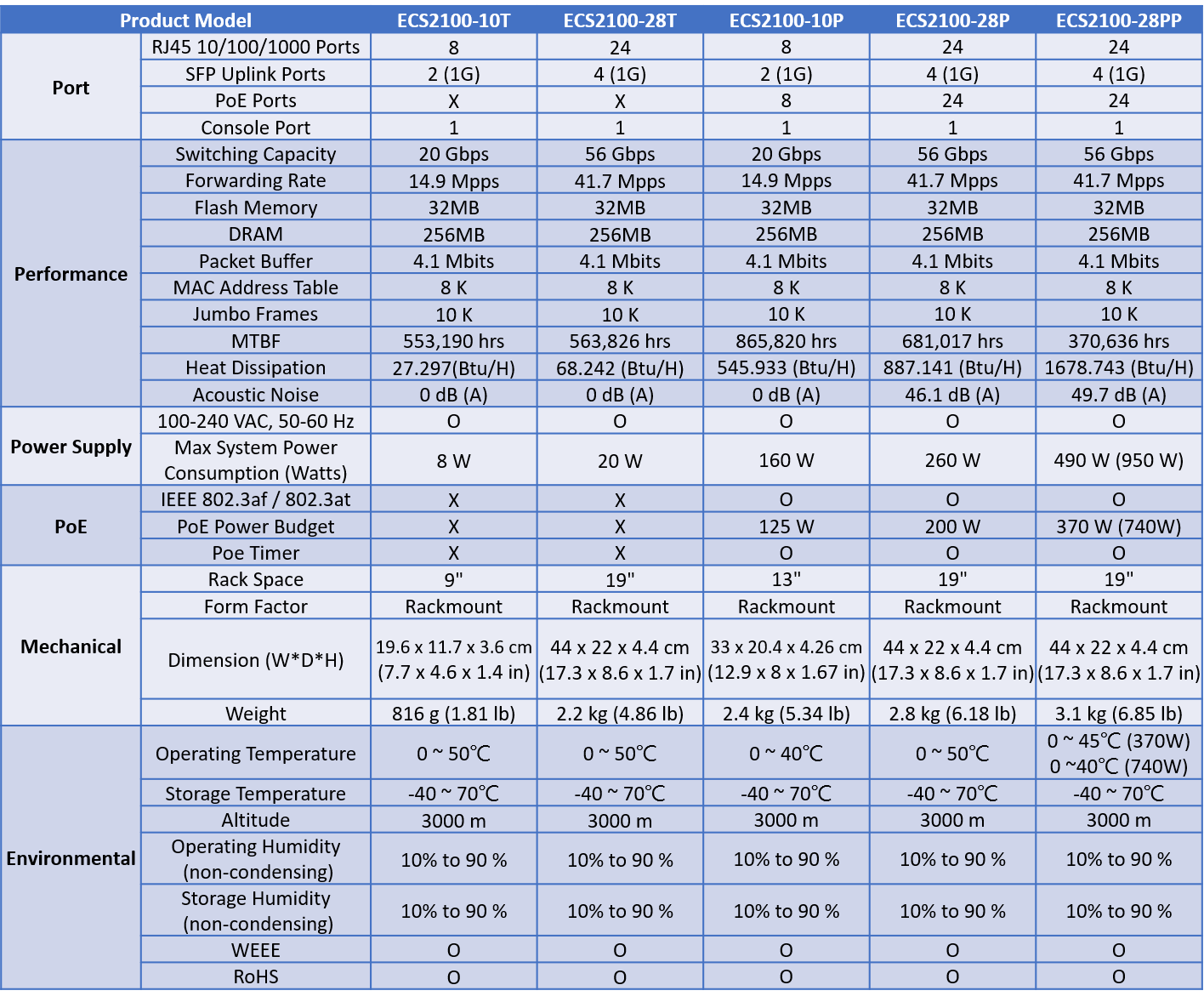

Product Model

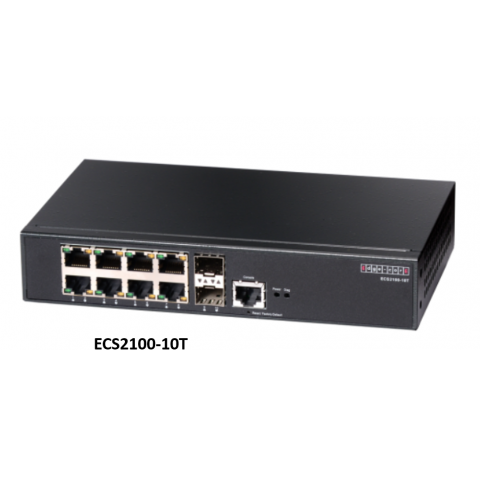

ECS2100-10T

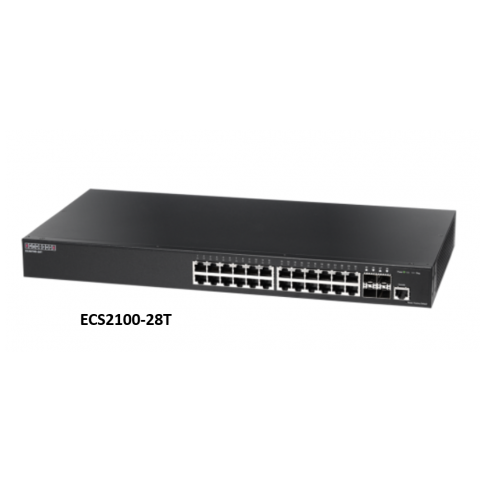

ECS2100-28T

ECS2100-10P

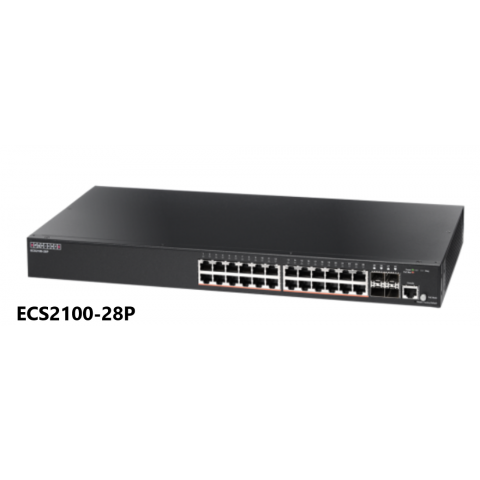

ECS2100-28P

ECS2100-28PP

Port

RJ45 10/100/1000 Ports

8

24

8

24

24

SFP Uplink Ports

2 (1G)

4 (1G)

2 (1G)

4 (1G)

4 (1G)

PoE Ports

X

X

8

24

24

Console Port

1

1

1

1

1
