Model Name |
Part NO. |
Description |
|

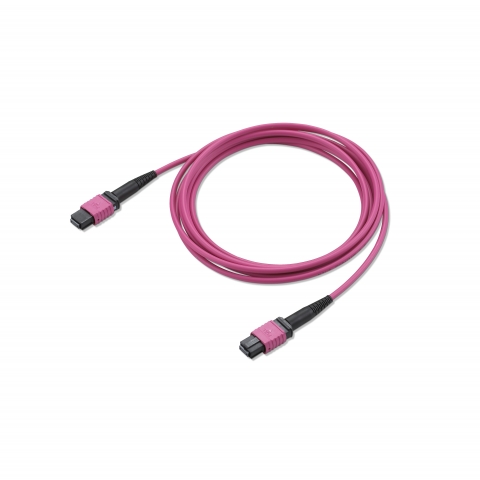

MPO-12MPO-OM3-3M |
JM3AL1L0030 |
MPO/PC(F)-MPO/PC(F), MM, 50/125μm(OM3) , 12C, 3M |
|
MPO-MPO-OM3-3M |
JM38L1L0030 |
MPO/PC(F)-MPO/PC(F), MM, 50/125μm(OM3) , 8C, 3M |
|
MPOM-12MPO-OM3-3M |
JM3AM1L0030 |
MPO/PC(M)-MPO/PC(F), MM, 50/125μm(OM3) , 12C, 3M |
|
MPOM-MPO-OM3-3M |
JM38M1L0030 |
MPO/PC(M)-MPO/PC(F), MM, 50/125μm(OM3) , 8C, 3M |
|
MPOM-12MPOM-OM3-3M |
JM3AM1M0030 |
MPO/PC(M)-MPO/PC(M), MM, 50/125μm(OM3) , 12C, 3M |
|
MPOM-MPOM-OM3-3M |
JM38M1M0030 |
MPO/PC(M)-MPO/PC(M), MM, 50/125μm(OM3) , 8C, 3M |
|

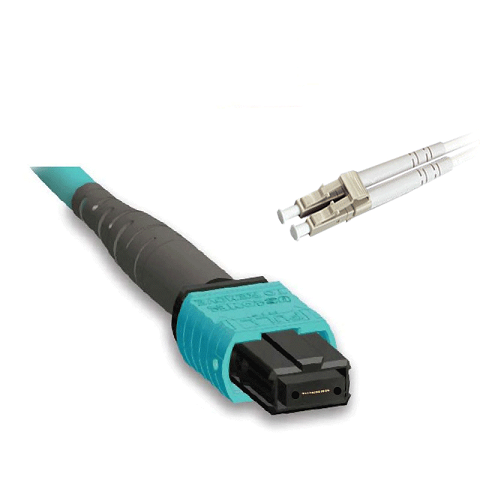

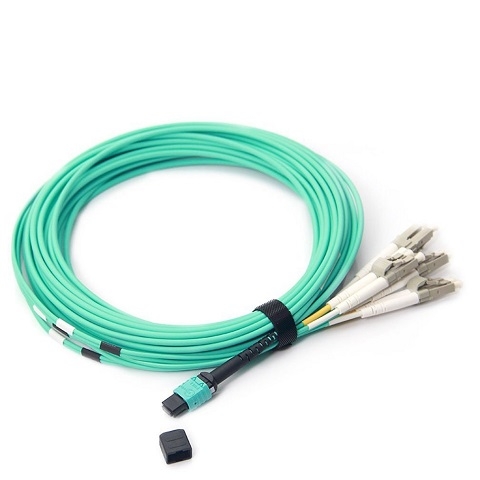

MPO-4DLC-OM3-3M |
JM38L8C0030 |
1xMPO/PC(F) to 4xDuplex LC/PC ,MM, 50/125μm(OM3), 8-Fiber, 3M |
|
MPOM-4DLC-OM3-3M |
JM38M8C0030 |
1xMPO/PC(M) to 4xDuplex LC/PC ,MM, 50/125μm(OM3), 8-Fiber, 3M |
|
MPO-12MPO-OM4-3M |
JM4AL1L0030 |
MPO/PC(F)-MPO/PC(F), MM, 50/125μm(OM4) , 12C, 3M |
|
MPO-MPO-OM4-3M |
JM48L1L0030 |
MPO/PC(F)-MPO/PC(F), MM, 50/125μm(OM4) , 8C, 3M |
|
MPOM-12MPO-OM4-3M |
JM4AM1M0030 |
MPO/PC(M)-MPO/PC(F), MM, 50/125μm(OM4) , 12C, 3M |
|
MPOM-MPO-OM4-3M |
JM48M1M0030 |
MPO/PC(M)-MPO/PC(F), MM, 50/125μm(OM4) , 8C, 3M |
|
MPOM-12MPOM-OM4-3M |
JM4AM1M0030 |
MPO/PC(M)-MPO/PC(M), MM, 50/125μm(OM4) , 12C, 3M |
|
MPOM-MPOM-OM4-3M |
JM48M1M0030 |
MPO/PC(M)-MPO/PC(M), MM, 50/125μm(OM4) , 8C, 3M |
|
MPO-4DLC-OM4-3M |
JM48L8C0030 |
1xMPO/PC(F) to 4xDuplex LC/PC ,MM, 50/125μm(OM4), 8-Fiber, 3M |
|
MPOM-4DLC-OM4-3M |
JM48L8C0030 |
1xMPO/PC(M) to 4xDuplex LC/PC ,MM, 50/125μm(OM4), 8-Fiber, 3M |
|

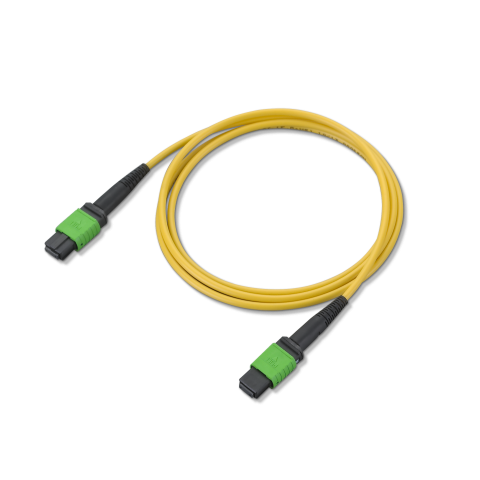

SM1-MPO-MPO-3M |
JS28N1N0030 |
1xMPO/APC(F) to 1xMPO/APC(F) , SM, 9/125μm(OS2), 8-Fiber , 3M |
|
SM1-MPO(M)-MPO-3M |
JS28P1N0030 |
1xMPO/APC(M) to 1xMPO/APC(F) , SM, 9/125μm(OS2), 8-Fiber , 3M |
|
SM1-MPO(M)-MPO(M)-3M |
JS28P1P0030 |
1xMPO/APC(M) to 1xMPO/APC(M) , SM, 9/125μm(OS2), 8-Fiber , 3M |
|
SM1-MPO-4DLC--3M |
JS28N8C0030 |
1xMPO/APC(F) to 4xDuplex LC/PC , SM, 9/125μm(OS2), 8-Fiber , 3M |
|
SM1-MPO(M)-4DLC--3M |
JS28P8C0030 |
1xMPO/APC(M) to 4xDuplex LC/PC , SM, 9/125μm(OS2), 8-Fiber , 3M |
Note: Cable Length (L)M
L=1M 2M 3M 5M 7M 10M 15M 20M 30M or desired the length of cable shall be supplier
Specifications:

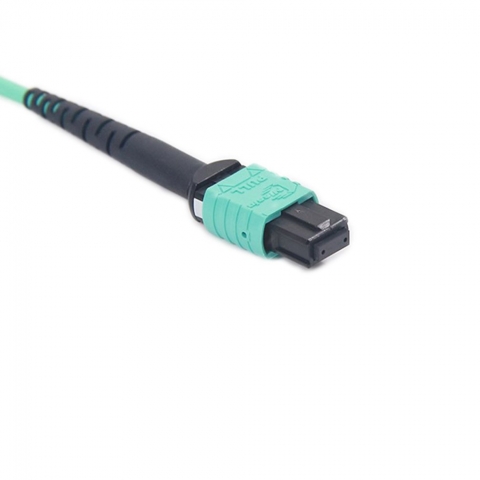

● MPO
● MMF(50/125um), OM3, OM4
● 8Core or 12Core High fiber density
● Insertion loss : <0.7 dB (<0.5dB Optional)
● Return loss : >25dB
● Insert- pull test : 500times<0.5 dB
● Operation: temperature : -40℃～+80℃
● Pin Optional: Default FEMALE

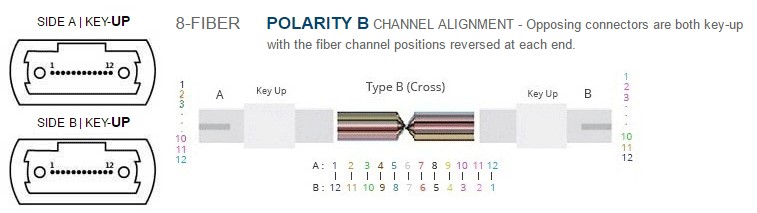

● POLARITY Optional: Default POLARITY B (For QSFP+Transceivers)
Drawing
MPO /APC

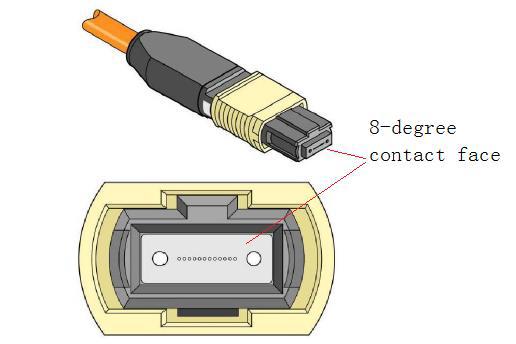

To minimize MPO connection induced reflections, an MPO receptacle with 8-degree angled end-face is utilized for this product. A female MPO connector with 8-degree end-face should be used with this product as illustrated in below.
