Model Name |
Part NO. |
Description |
|

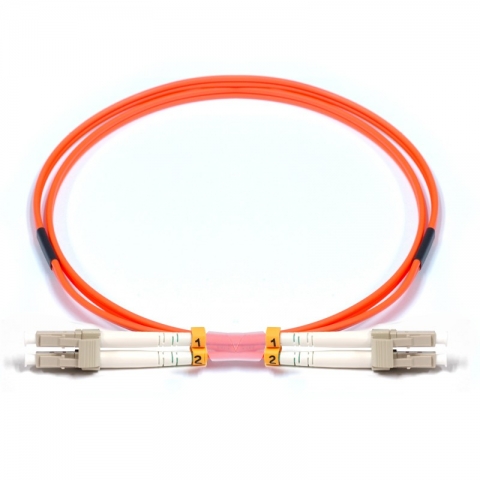

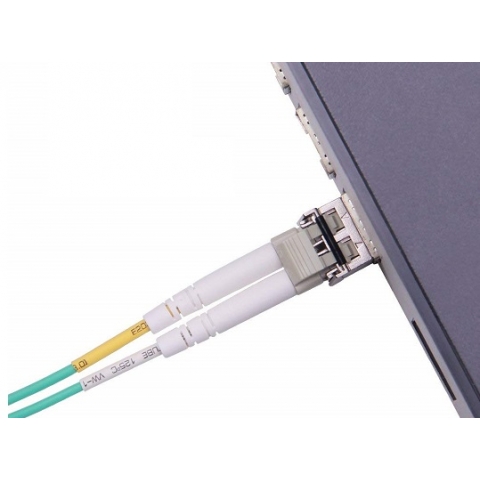

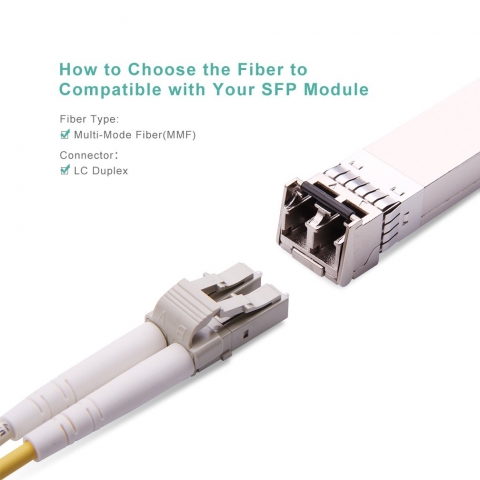

LC-LC-OM1-DNM |
JM12L1LXXX0 |
LC/PC - LC/PC , MM, 62.5/125μm , Duplex , NM |
|
LC-LC-OM2-DNM |
JM22L1LXXX0 |
LC/PC - LC/PC , MM, 50/125μm , Duplex , NM |
|
LC-LC-OM3-DNM |
JM32L1LXXX0 |
LC/PC - LC/PC , MM, 50/125μm(OM3) , Duplex , NM |
|
LC-LC-OM4-DNM |
JM42L1LXXX0 |
LC/PC - LC/PC , MM, 50/125μm(OM4) , Duplex , NM |
|
LC-LC-OS2-DNM |
JS22L1LXXX0 |
LC/PC - LC/PC , SM, 9/125μm , Duplex , NM |
|
SC-LC-OM1-DNM |
JM12A1CXXX0 |
SC/PC - LC/PC , MM, 62.5/125μm , Duplex , NM |
|
SC-LC-OM2-DNM |
JM22A1CXXX0 |
SC/PC - LC/PC , MM, 50/125μm , Duplex , NM |
|
SC-LC-OM3-DNM |
JM32A1CXXX0 |
SC/PC - LC/PC , MM, 50/125μm(OM3) , Duplex , NM |
|

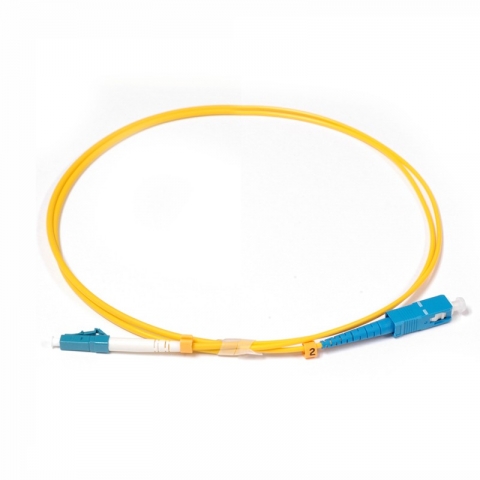

SC-LC-OS2-DNM |
JS22A1CXXX0 |
SC/PC - LC/PC , SM, 9/125μm , Duplex , NM |
|
ST-LC-OM1-DNM |
JM12E1CXXX0 |
ST/PC - LC/PC , MM, 62.5/125μm , Duplex , NM |
|
ST-LC-OM2-DNM |
JM22E1CXXX0 |
ST/PC - LC/PC , MM, 50/125μm , Duplex , NM |
|
ST-LC-OM3-DNM |
JM32E1CXXX0 |
ST/PC - LC/PC , MM, 50/125μm(OM3) , Duplex , NM |
|
ST-LC-OS2-DNM |
JS22E1CXXX0 |
ST/PC - LC/PC , SM, 9/125μm , Duplex , NM |
|
SC-SC-OM1-DNM |
JM12A1AXXX0 |
SC/PC - SC/PC , MM, 62.5/125μm , Duplex , NM |
|
SC-SC-OM2-DNM |
JM22A1AXXX0 |
SC/PC - SC/PC , MM, 50/125μm , Duplex , NM |
|
SC-SC-OM3-DNM |
JM32A1AXXX0 |
SC/PC - SC/PC , MM, 50/125μm(OM3) , Duplex , NM |
|
SC-SC-OS2-DNM |
JS22A1AXXX0 |
SC/PC - SC/PC , SM, 9/125μm , Duplex , NM |
|
ST-SC-OM1-DNM |
JM12E1AXXX0 |
ST/PC - SC/PC , MM, 62.5/125μm , Duplex , NM |
|
ST-SC-OM2-DNM |
JM22E1AXXX0 |
ST/PC - SC/PC , MM, 50/125μm , Duplex , NM |
|
ST-SC-OM3-DNM |
JM32E1AXXX0 |
ST/PC - SC/PC , MM, 50/125μm(OM3) , Duplex , NM |
|
ST-SC-OS2-DNM |
JS22E1AXXX0 |
ST/PC - SC/PC , SM, 9/125μm , Duplex , NM |
|
ST-ST-OM1-DNM |
JM12E1EXXX0 |
ST/PC - ST/PC , MM, 62.5/125μm , Duplex , NM |
|
ST-ST-OM2-DNM |
JM22E1EXXX0 |
ST/PC - ST/PC , MM, 50/125μm , Duplex , NM |
|
ST-ST-OM3-DNM |
JM32E1EXXX0 |
ST/PC - ST/PC , MM, 50/125μm(OM3) , Duplex , NM |
|
ST-ST-OS2-DNM |
JS22E1EXXX0 |
ST/PC - ST/PC , SM, 9/125μm , Duplex , NM |
D=Duplex S=Simplex
Note: Cable Length (NM)
1M 2M 3M 5M 7M 10M 15M 20M 30M or desired the length of cable shall be supplier
Key Features
- Single mode(9/125μm) & Multimode(50/125,62.5/125μm)
- Standard & custom configurations
- Precision end face geometry testing
- Physical contact polishing mode
- 8。Singled physical contact polishing mode
- Low Insertion Loss
- Ultra low Return Loss (SM only)
- High density packing, reliability and efficiency
- Compliant with Bell core GR-326-CORE、JIS C5970/C5973

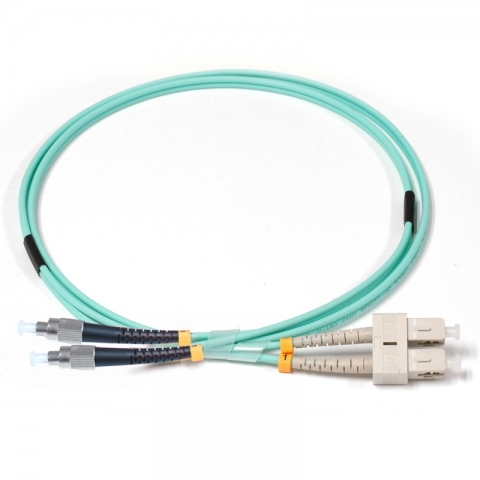

- SC, LC, ST, FC, MU, RJ-45 are available
Application
- LAN / WAN
- CATV
- Test equipment
- Telecommunication networks
- Data processing networks
- Industrial, Medical, Military
- Active device termination
Specifications
| Connector Type | FC, SC, LC, ST, MTRJ, MU, MPO | |||||
| Fiber Mode | SM | MM | ||||
| Cable Mode | μm | 9/125 (OS1) |
62.5/125 (OM1) |
50/125 (OM2) |
50/125 (OM3) |
50/125 (OM4) |
| Cable diameter | mm | φ3.0, φ2.0, φ0.9 | ||||
| Storage Temp. | °C | -45~85 | ||||
| Operating Temp. | °C | -40~75 | ||||
| Vibration | dB | ≤0.2 | ||||
| Exchangeability | dB | ≤0.2 | ||||
| Return loss | dB | ≥45 (PC) ≥50 (SPC) ≥55 (UPC) ≥65 (APC) |
||||
| Insertion loss | dB | ≤0.3 | ||||
