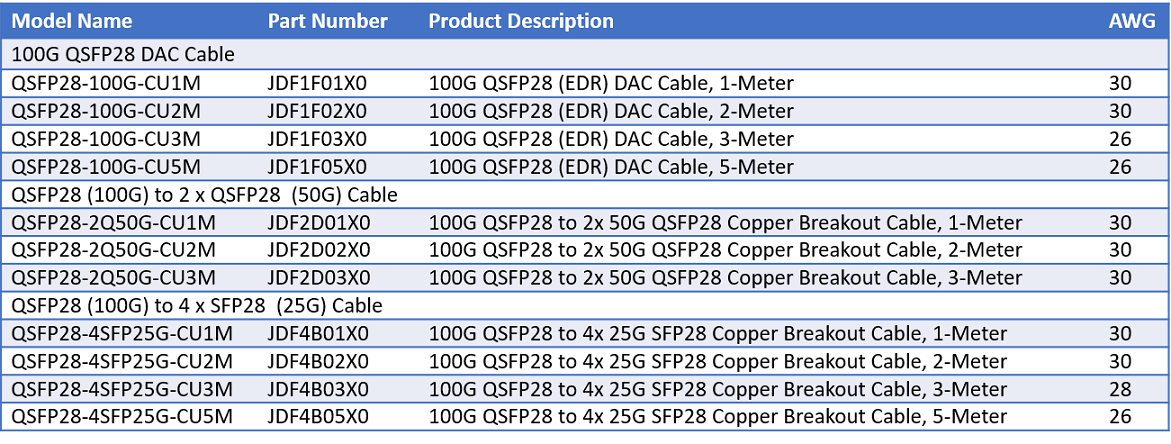

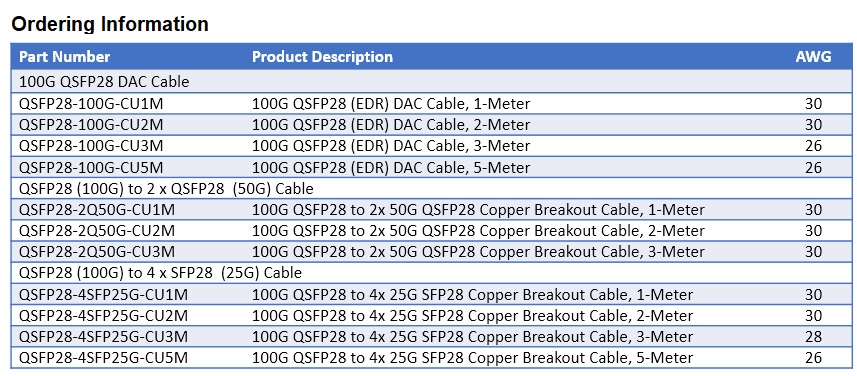

Model Name |
Part Number |
Product Description |
AWG |
|
100G QSFP28 DAC Cable |
|||
|
QSFP28-100G-CU1M |
JDF1F01X0 |
100G QSFP28 (EDR) DAC Cable, 1-Meter |
30 |
|
QSFP28-100G-CU2M |
JDF1F02X0 |
100G QSFP28 (EDR) DAC Cable, 2-Meter |
30 |
|
QSFP28-100G-CU3M |
JDF1F03X0 |
100G QSFP28 (EDR) DAC Cable, 3-Meter |
26 |
|
QSFP28-100G-CU5M |
JDF1F05X0 |
100G QSFP28 (EDR) DAC Cable, 5-Meter |
26 |
|
QSFP28 (100G) to 2 x QSFP28 (50G) Cable |
|||
|
QSFP28-2Q50G-CU1M |
JDF2D01X0 |
100G QSFP28 to 2x 50G QSFP28 Copper Breakout Cable, 1-Meter |
30 |
|
QSFP28-2Q50G-CU2M |
JDF2D02X0 |
100G QSFP28 to 2x 50G QSFP28 Copper Breakout Cable, 2-Meter |
30 |
|
QSFP28-2Q50G-CU3M |
JDF2D03X0 |
100G QSFP28 to 2x 50G QSFP28 Copper Breakout Cable, 3-Meter |
30 |
|
QSFP28 (100G) to 4 x SFP28 (25G) Cable |
|||
|
QSFP28-4SFP25G-CU1M |
JDF4B01X0 |
100G QSFP28 to 4x 25G SFP28 Copper Breakout Cable, 1-Meter |
30 |
|
QSFP28-4SFP25G-CU2M |
JDF4B02X0 |
100G QSFP28 to 4x 25G SFP28 Copper Breakout Cable, 2-Meter |
30 |
|
QSFP28-4SFP25G-CU3M |
JDF4B03X0 |
100G QSFP28 to 4x 25G SFP28 Copper Breakout Cable, 3-Meter |
28 |
|
QSFP28-4SFP25G-CU5M |
JDF4B05X0 |
100G QSFP28 to 4x 25G SFP28 Copper Breakout Cable, 5-Meter |
26 |
.png)
Features
● Supports aggregate data rates of 100Gbps
● Supports 100G to 2x50G Ethernet interoperability
● Supports 100G to 4x 25G Ethernet interoperability
● Low insertion loss and low cross talk
● Wide operating temperature range:
Standard: 0℃ to +70℃
Industrial: -20℃ to +80℃
Applications
● Low EMI radiation Switches, servers and routers
● Data Center networks
● Storage area networks
● High performance computing
● Telecommunication and wireless infrastructure
● Medical diagnostics and networking
● Test and measurement equipment
Compliant
● 100G Ethernet (IEEE 802.3bj)
● InfiniBand EDR
● SFF-8665
● RoHS compliant
