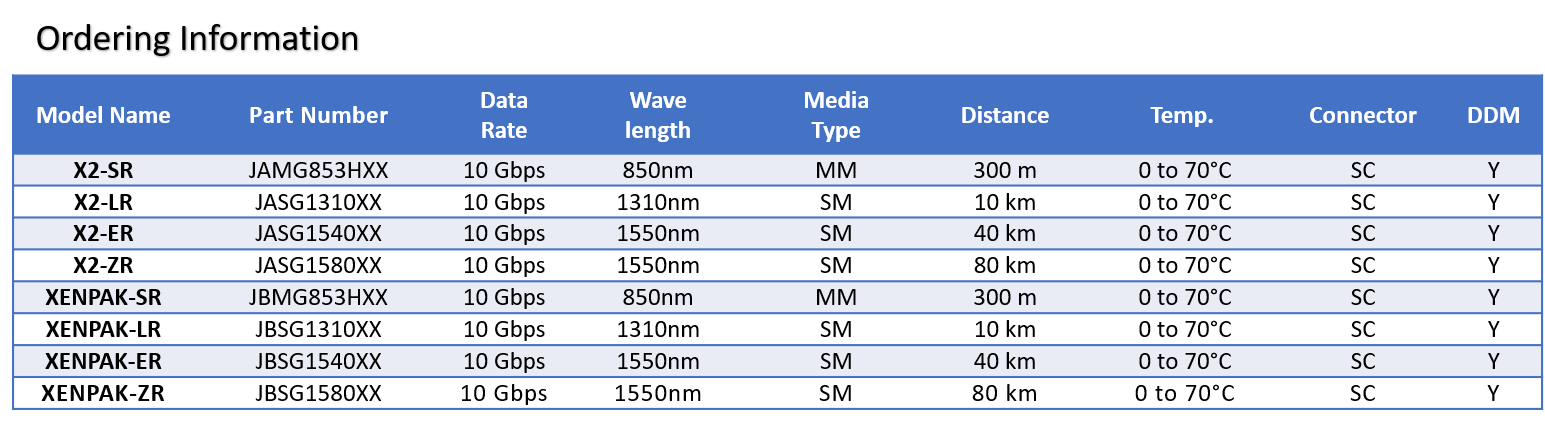

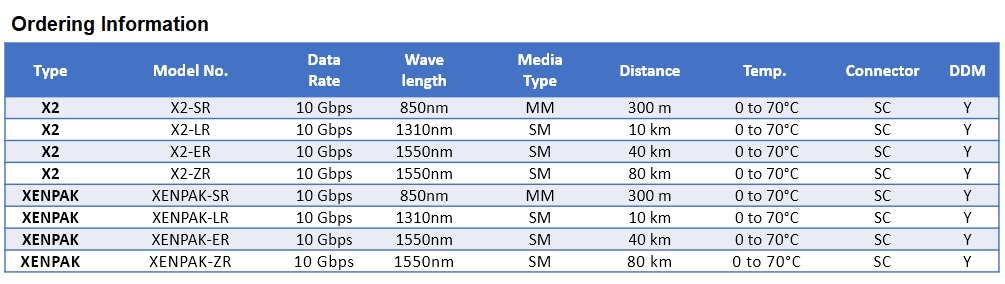

Model Name |
Part Number |
Data Rate |
Wave |
Media |
Distance |
Temp. |
Connector |
DDM |
|

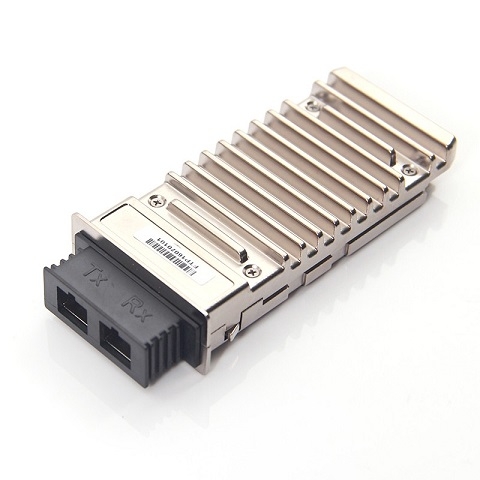

X2-SR |
JAMG853HXX |
10 Gbps |
850nm |
MM |
300 m |
0 to 70°C |
SC |
Y |
|
X2-LR |
JASG1310XX |
10 Gbps |
1310nm |
SM |
10 km |
0 to 70°C |
SC |
Y |
|
X2-ER |
JASG1540XX |
10 Gbps |
1550nm |
SM |
40 km |
0 to 70°C |
SC |
Y |
|
X2-ZR |
JASG1580XX |
10 Gbps |
1550nm |
SM |
80 km |
0 to 70°C |
SC |
Y |
|

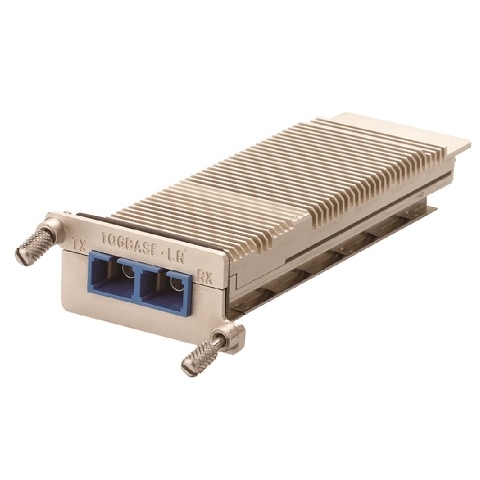

XENPAK-SR |
JBMG853HXX |
10 Gbps |
850nm |
MM |
300 m |
0 to 70°C |
SC |
Y |
|
XENPAK-LR |
JBSG1310XX |
10 Gbps |
1310nm |
SM |
10 km |
0 to 70°C |
SC |
Y |
|
XENPAK-ER |
JBSG1540XX |
10 Gbps |
1550nm |
SM |
40 km |
0 to 70°C |
SC |
Y |
|
XENPAK-ZR |
JBSG1580XX |
10 Gbps |
1550nm |
SM |
80 km |
0 to 70°C |
SC |
Y |
Key Features
- Laser Class 1 compliant
- Duplex SC connector
- RoHS Compliant
- Hot pluggable 70-pin connector with XAUI electrical interface
- Management and control via MDIO 2-wire interface
- Support of IEEE 802.3ae application
- Compatible with X2 MSA Rev.2.0b
- Complaint with the EU RoHS 6 Environmental requirements
- Low Power Consumption 2.0 W (typ.)
