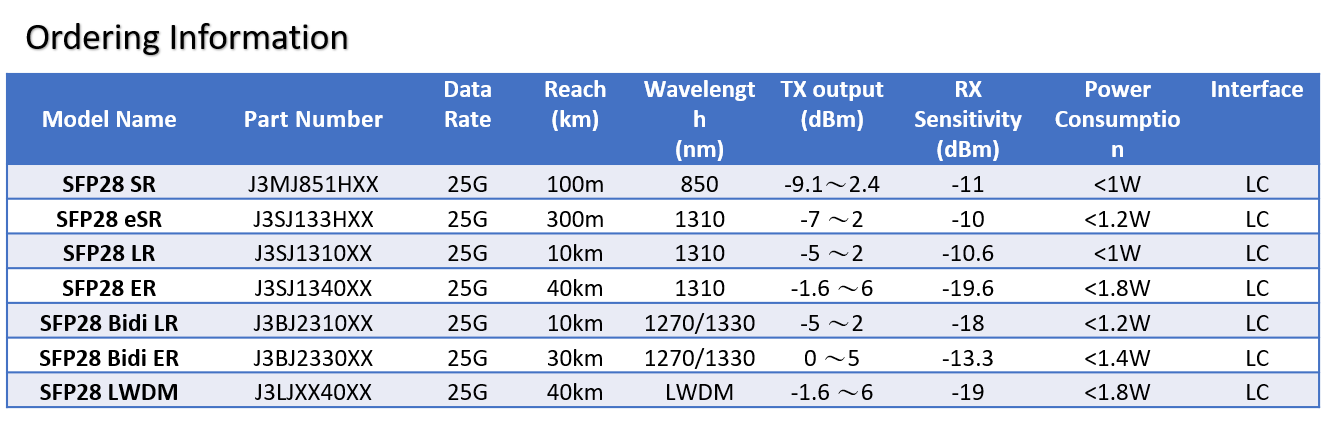

Model Name |
Part Number |
Data Rate |
Reach |
Wavelength |
TX output |
RX Sensitivity |
Power Consumption |
Interface |
|
SFP28 SR |
J3MJ851HXX |
25G |
100m |
850 |
-9.1～2.4 |
-11 |
<1W |
LC |
|
SFP28 eSR |
J3SJ133HXX |
25G |
300m |
1310 |
-7 ～2 |
-10 |
<1.2W |
LC |
|
SFP28 LR |
J3SJ1310XX |
25G |
10km |
1310 |
-5 ～2 |
-10.6 |
<1W |
LC |
|
SFP28 ER |
J3SJ1340XX |
25G |
40km |
1310 |
-1.6 ～6 |
-19.6 |
<1.8W |
LC |
|
SFP28 Bidi LR |
J3BJ2310XX |
25G |
10km |
1270/1330 |
-5 ～2 |
-18 |
<1.2W |
LC |
|
SFP28 Bidi ER |
J3BJ2330XX |
25G |
30km |
1270/1330 |
0 ～5 |
-13.3 |
<1.4W |
LC |
|
SFP28 LWDM |
J3LJXX40XX |
25G |
40km |
LWDM |
-1.6 ～6 |
-19 |
<1.8W |
LC |
.png)
Key Features
- Operating Data Rate Support 24.33Gbps and 25.78Gbps with CDR engaged Mode
- Operating Data Rate Support 9.95Gbps and 10.31Gbps with CDR bypassed Mode
- Distances up to 10km, 20km, 30km and 40km
- Single 3.3V Power Supply
- Duplex LC Connector Interface, Hot Pluggable
- Compliant with MSA SFP+ Specification SFF-8402
- Built-in Dual CDR
- Low Power Dissipation
- Operating Case Temperature:
- Operating temperature range: c-temp or i-temp
